[RPi] Lab.01-2: GPIO

[RPi] Lab.01-1: GPIO 실습에 이어 라즈베리파이와  DE2-115 보드를 활용하여 GPIO output 을 실습한다.





[GPIO]



[RPi]

RPi.GPIO 파이썬 라이브러리를 설치한다.

$ sudo apt-get update
$ sudo apt-get upgrade -y
$ sudo apt-get install python3-dev
# RPi.GPIO 설치
$ sudo apt-get install python3-rpi.gpio



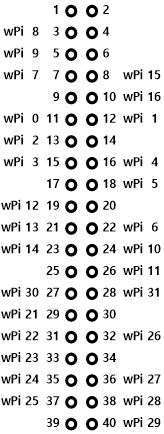

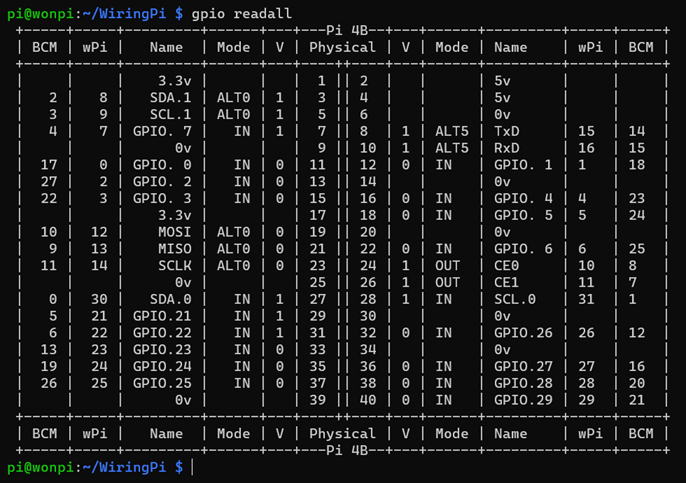

[gpio_output.py]

#####gpio_output.py--------------------------#####
import RPi.GPIO as gpio
from time import sleep

#####----------------------------------------#####
gpio5 = 24

gpio.setmode(gpio.BCM)
gpio.setup(gpio5, gpio.OUT)

#####----------------------------------------#####
try:
    while True:
        gpio.output(gpio5, 1)
        sleep(0.5)
        gpio.output(gpio5, 0)
        sleep(0.5)

except KeyboardInterrupt:
    gpio.cleanup()



[Test Result]

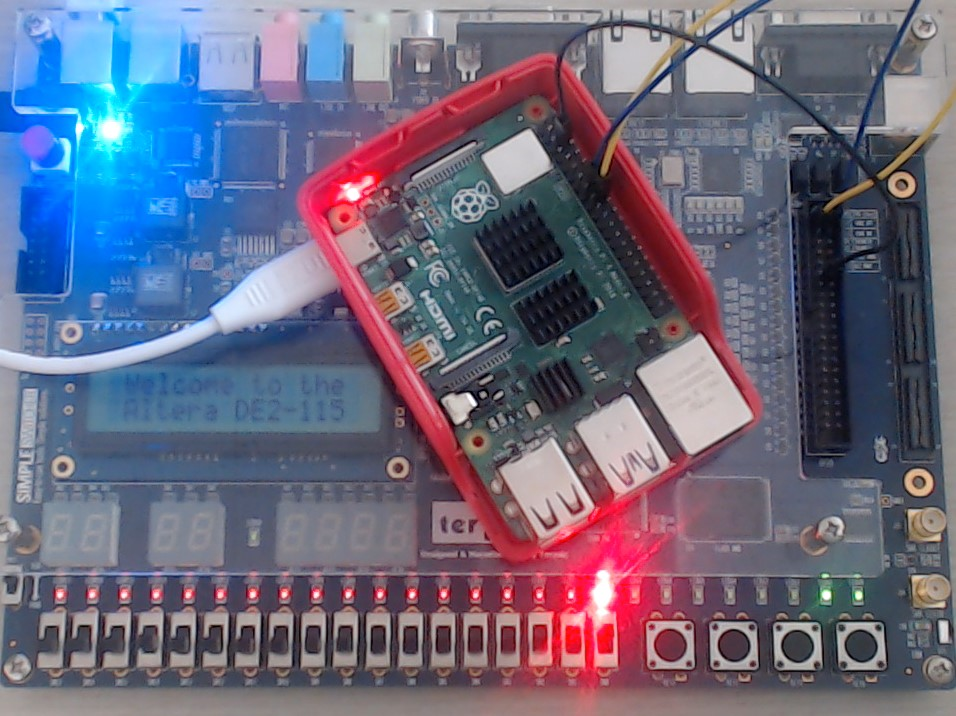

회로를 구성하고 터미널에서 gpio_output.py 를 실행하면 DE2-115 보드의 LED 가 점등된다.

$ python3 gpio_output.py







[참조]

www.raspberrypi.org

Python3 RPi.GPIO Library

import RPi.GPIO as GPIO
#
GPIO.setmode(GPIO.BCM)
GPIO.setmode(GPIO.BOARD)

#
GPIO.setup(PIN, GPIO.IN)
GPIO.setup(PIN, GPIO.OUT)

#
GPIO.input(0/1)
GPIO.output(PIN, 0/1)

# ISR
GPIO.add_event_detect(CHANNEL, EDGE, CALLBACK)
